Model KB-15G – Electric Horn and Hailer


KAHLENBERG - Model KB-15G Electric Horn and Hailer

Enquiry Item

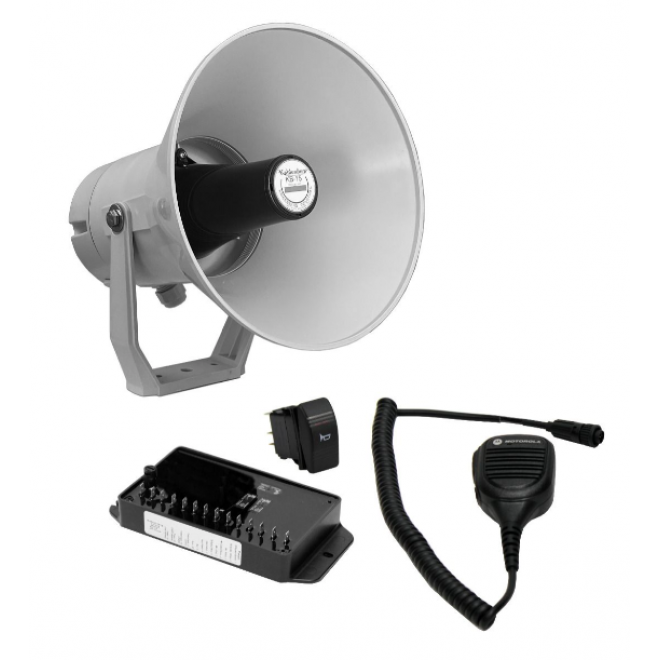

The KB-15G is a type approved Electronic Horn and Voice Hailing system for marine use that produces a powerful horn signal for all types of vessels up to 20 meters in length. In addition, the KB-15G-BASE model provides voice amplification for marine hailing purposes. Included are a "black box" control module for mounting inside the helm station, "push to talk" microphone with mounting bracket, and a high output marine duty speaker made entirely from corrosion proof materials. Auxiliary inputs are included for connection of other audio sources such as radios or public address systems. The KB-15G Horn Signal is ideally controlled with the included Kahlenberg M-127 rocker switch, but can be configured for use with any standard momentary contact push button or Kahlenberg Signal Timer/Control for automatic operation.
•    121 dB of Horn and Hailing Power
•    Type Approved for Vessels up to 20 Meters in Length
•    "Black Box" CM-15 control unit with console mount speaker/microphone included
•    Operates with M-127 Push Button and/or any Kahlenberg Signal Control Timer for automatic fog signaling
•    Multiple Horns can be controlled from single station for hailing/talkback and/or horn signal
•    Auxiliary Audio Input provided for use with other audio sources
•    Operates on 12 or 24 Volt D.C. electrical current


We will notify you when the product becomes available.


Vessel Length

Less than 20 Meters (65 ft.)



Power Type


Additional Specifications

Frequency: 698 HzS.P.L.
Output: 121 dB (1/3 Octave Band)
Voltage: 12 or 24 Volt D.C.
Power Consumption: 30 Watts
Materials: (Horn and Driver) Polyamide
(Mounting Bracket and fasteners): Stainless Steel
Finish: Grey
Net Weight: (Horn) 4 lbs. (1.8 kg)
Ingress Protection: (Horn) IP67
Max./Min. Amb. Temp.: -30 deg. F.(-34 deg. C/120 deg. F/49 deg. C.
Cable Size: .25" (6mm)- .45" (11.5mm)
